YAG Mould Laser Welding Machine
Designed for the mold industry, our Mould Laser Welding System offers precise repair of porosity, cracks, and edge damage. It reduces manufacturing costs and post-processing, with power options of 200W, 400W, and 600W to suit various needs.
Key Features
High-quality imported ceramic condenser cavities resistant to corrosion and high temperatures, offering extended lifespan.
Advanced automatic dimming system to protect eyes from laser glare for a safe working environment.
Laser head with 360° rotation and large work area, supported by an electric lift worktable for easy mold handling.
User-friendly touchscreen interface for simple and efficient operation.
Powerful welding energy capable of melting thicker materials for consistent and reliable welds.
Technical Specifications
| Laser Wavelength | 1064nm / 1064nm / 1064nm |
| Condenser Cavity Reflector | Ceramic Condenser Cavity / Dual-Lamp Condenser Cavity / Dual-Lamp Condenser Cavity |
| Maximum Laser Power | 200W / 400W / 600W |
| Rated Power | 8KW / 12KW / 16KW |
| Pulse Width | 0.1-10MS / 0.1-10MS / 0.1-10MS |
| Light Spot Adjustment Range | 0.2-2mm / 0.3-3mm / 0.3-3.5mm |
| Laser Frequency | 1-20HZ / 1-30HZ / 1-30HZ |
| Cooling System | 1.5P / 3P / 5P |
| Aiming and Positioning | CCD or Microscope / CCD or Microscope / CCD or Microscope |

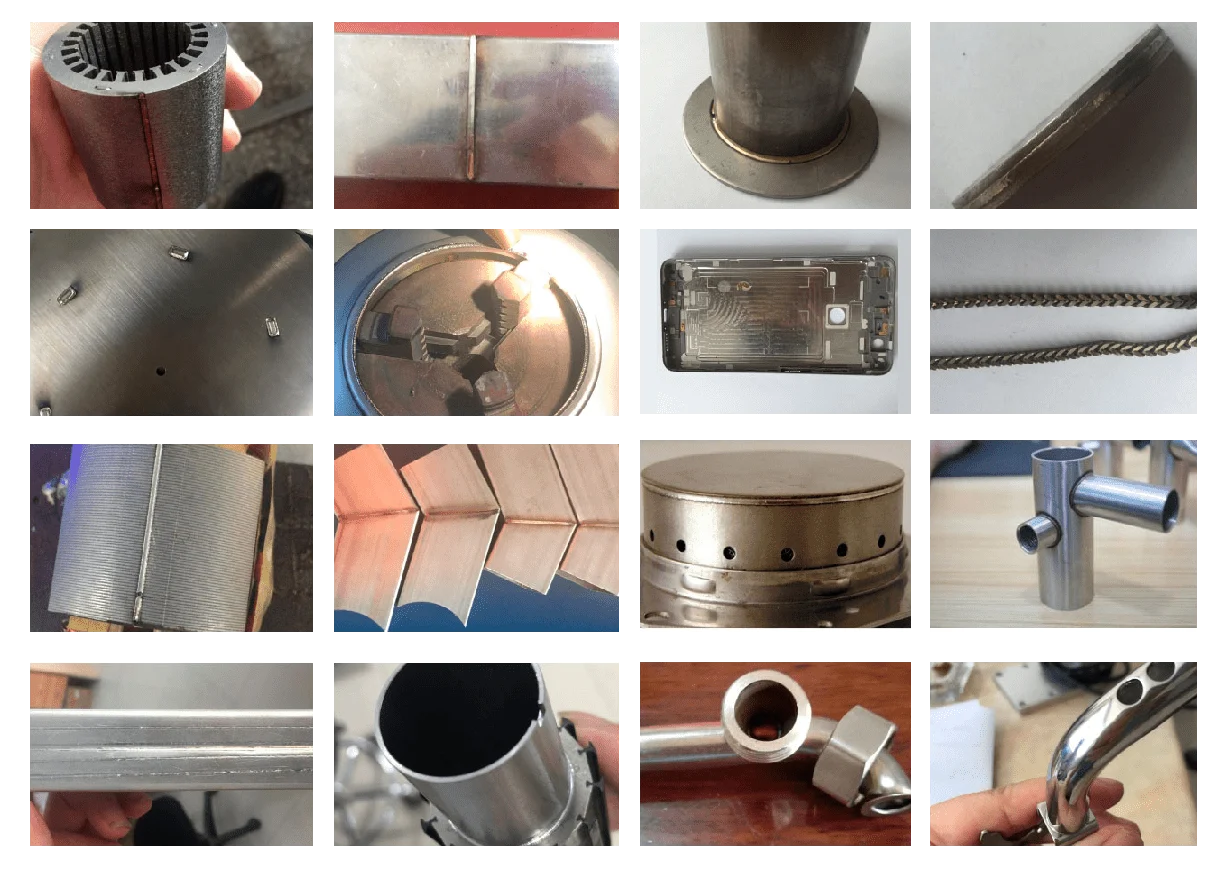

Applications
Applications
