Mini UV Laser Marking Machine & Laser Engraving Machine
The Hispeed UV laser engraver has a special low-power laser beam. This makes it perfect for ultra-fine work in high-end markets. It makes clear, precise, and lasting marks on cosmetic, pharmaceutical, and food bottles made from polymers. Superior to ink coding with no pollution.
Key Features
355nm wavelength with high repetition rate, ideal for marking plastics like ABS, HDPE, and PC.
High-speed marking ensures short cycle times for industrial manufacturing.
High peak power enables fine marking and structuring without thermal damage on glass and ceramics.
Uses third harmonic generation (THG) intracavity frequency doubling technology for precise UV laser output.
Extremely small laser spot size reduces mechanical deformation and limits heat-affected zones.

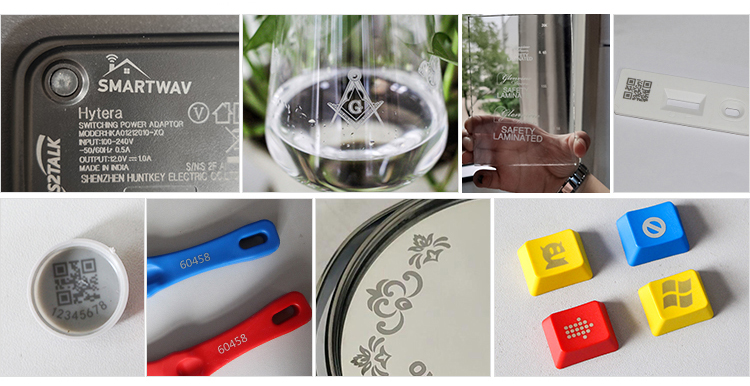

Perfect for hyperfine marking and engraving on sensitive materials such as packaging, medicines, mobile phones, keyboards, and chargers.
Delivers consistent, high-quality permanent marks with minimal thermal impact.
Technical Specifications
| Model | LS-UV-3 |
| Power | 3W |
| Wavelength | 355nm |
| Beam Quality (M²) | <1.3 |
| Output Power Range | 10% - 100% |
| Output Frequency | 15kHz - 100kHz |
| Power Stability (8h) | <±2% RMS |
| Pulse-to-Pulse Instability | <±3% RMS |
| Spatial Mode | TEM₀₀ (M² <1.3) |
| Beam Divergence | <2 mrad (full angle) |
| Beam Diameter | 0.6 ± 0.1 mm |
| Beam Roundness | >90% |
| Pointing Stability | <50 μrad |
| Polarization Direction | Horizontal |
| Polarization Ratio | 1900:1 |
| Cooling Method | Air Cooling |
Applications
