Fully Enclosed Fiber Laser Marking Machine & Laser Engraving Machine
Hispeed’s fully enclosed fiber laser marking machine features a high-quality Chinese fiber laser source and galvanometer scanning system, delivering stable output, excellent beam quality, and high-speed marking. It’s easy to operate, maintenance-free, and ideal for long-term industrial use and mass production.
Key Features
Equipped with advanced Chinese fiber laser source and high-quality galvanometer scanning system.
Delivers stable power output, superior beam quality, and high-speed marking performance.
Achieves perfect marking results with high efficiency, ideal for mass production environments.
Attractive, fully enclosed design with user-friendly operation and minimal maintenance required.
Operates without the need for consumable materials, reducing operational costs.
Built for continuous industrial use with reliable long-term performance and low failure rates.
Technical Specifications
| Model | LS-YLP-20L / LS-YLP-30L / LS-YLP-50L |
| Laser Type | Q-Switch |
| Laser Power | 20W / 30W / 50W |
| Wavelength | 1064nm |
| Beam Quality | M² < 1.5 |
| Marking Range | 50 × 50mm – 300 × 300mm (optional) |
| Max. Line Speed | 7000mm/s |
| Min. Line Width | 0.01mm |
| Min. Character Height | 0.05mm |
| Repeatability | ±0.01mm |
| Cooling Mode | Air Cooling |
| Power Requirement | 220V ±10% / 50Hz or 110V ±10% / 60Hz |

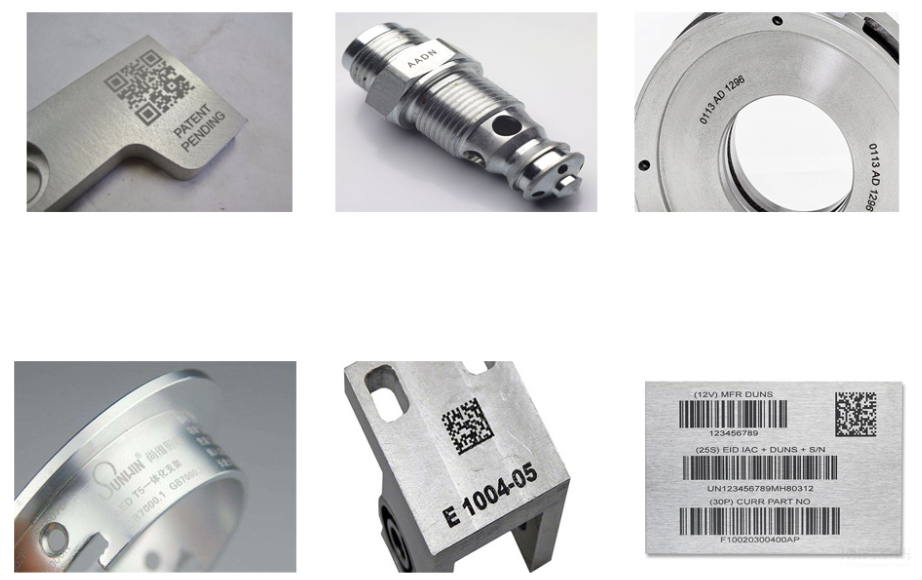

Applications
