CNC CO2 Laser Cutter Engraver
Laser cutting offers fast, clean, and precise results across a wide range of materials and thicknesses. With no tool force, it allows for intricate designs, sharp corners, and tight spacing—making it ideal for efficient, high-accuracy fabrication without costly tooling.
Key Features
Adopts internationally advanced DSP control technology, enabling fast continuous curve cutting and optimized path processing for improved efficiency.
Automatically compensates for light attenuation across the cutting area, ensuring consistent cutting effects and enhanced production speed.
Advanced software allows for direct output of original images and fully meets users’ graphic design requirements with support for multiple color layers and cutting sequences.
Equipped with USB data transmission and large internal memory for faster processing and significantly improved work efficiency.
Technical Specifications
| Model | LS-1390 |
| Laser Type | CO2 laser |
| Laser Power | 130W |
| Engraving Speed | 0-64m/m |
| Cutting Speed | 0-36m/m |
| Repeat Accuracy | ±0.05mm |
| Moving System | CNC control system |
| Cooling Mode | Water-cooling and protection system |
| Overall Power Consumption | ≤1250W |
| Working Voltage | 220±10% 50Hz(60Hz) |
| Operating Temperature | 0~45ºC |
| Operating Humidity | 5%-95% |
| Controlling Software | Ruida Control Card |
| Graphic Supported Format | CAD, MP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Working Area | 1300mm × 900mm |
| G.W | 550KG |
| Package Dimension | 2000mm × 1600mm × 1270mm |

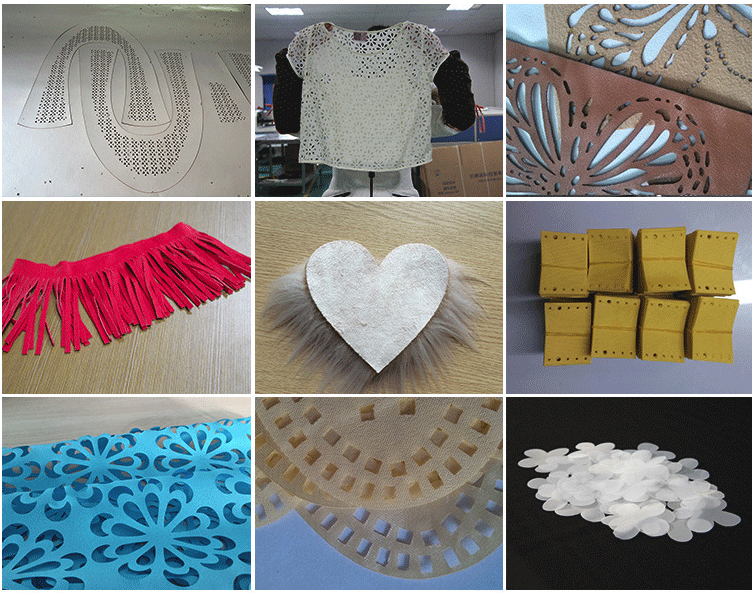

Applications
