Hotmarker SP8600
Industrial thermal transfer printers use a thermal printhead to achieve fast and beautiful printing with excellent durability.
Key Features
Stand-Alone Operation - Stand-alone operation possible with a keyboard(included), Work with a PC through included PCMS communication software
Increased Productivity - 10% faster over the previous model(SP7600). (When used at Tube mode:Tube length 20mm, 5 characters×1 line marking)
USB Memory Device Compatible - USB memory compatible with USB memory devaice.
Technical Specifications
| DIMENSIONS | (W)４３２mm × (D)2８０mm × (H)３０２mm |
| WEIGHT | １2.０kg |
| PRINTING METHOD | Thermal Transfer(300dpi or higher, horizontal direction) |
| Display | LCD with white backlight（４０ digits × 4 line） |
| PRINTING SPEED | 29mm～39mm/sec. Depending upon material type and cutting mode |
| Maximum printing length | Tube : 200m, Tape : 200m |
| Maximum number of characters to input | 22,000 characters per file, up to 8 files can be stored, Max 1,000 line in main memory & Max 1,000 lines/bank × 8 banks in extended memory |
| Usable tape | Width 20,30mm(CTK genuine tape) |
| Tube cutting method | Auto half/full cut,No Cut |
| Internal memory | Max 1,000 line x 8banks |
| External memory | Max 1,000 lines/bank × 8 banks |
| Interface | USB 2.0 full speed |
Applications

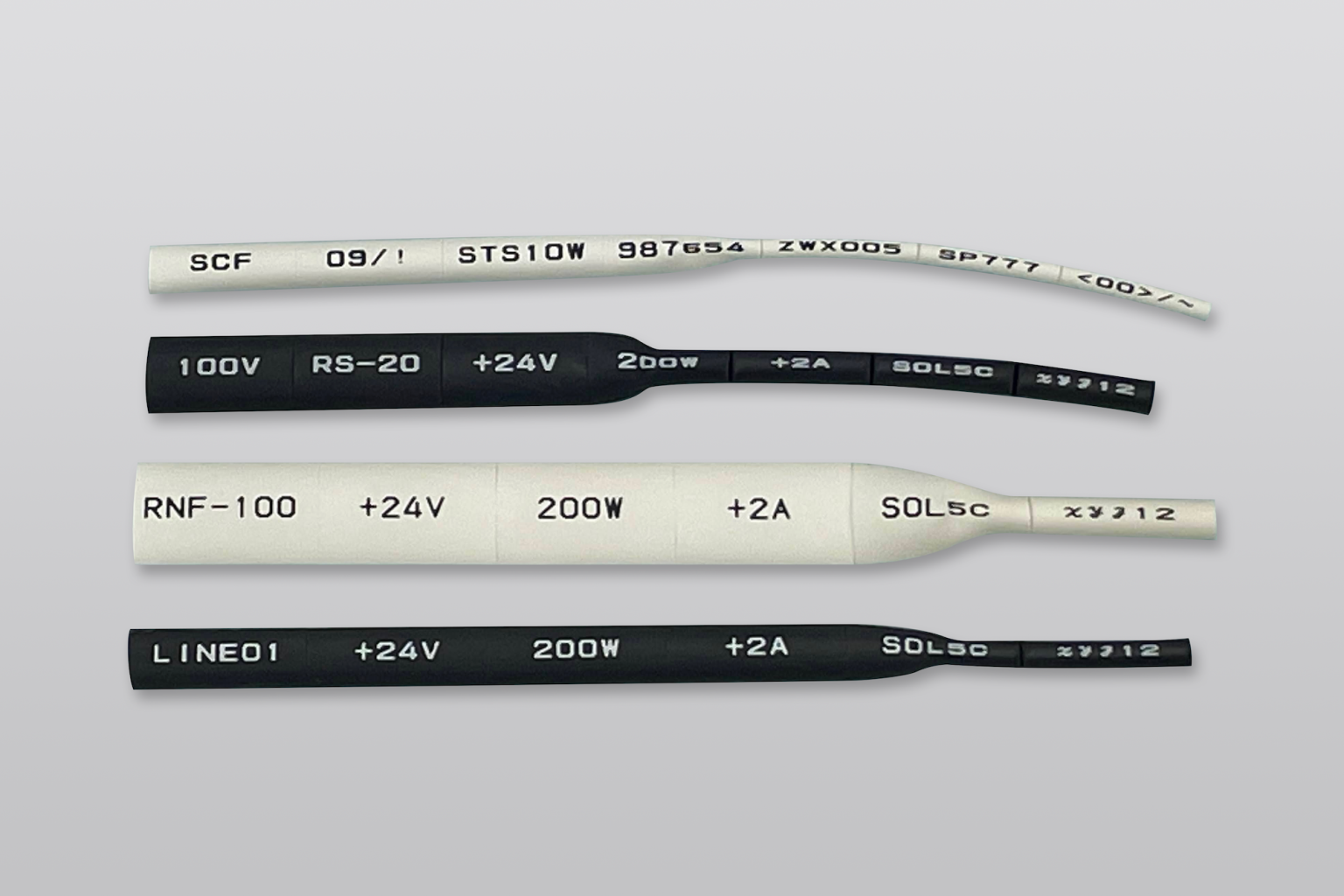

Heat-shrink tubings

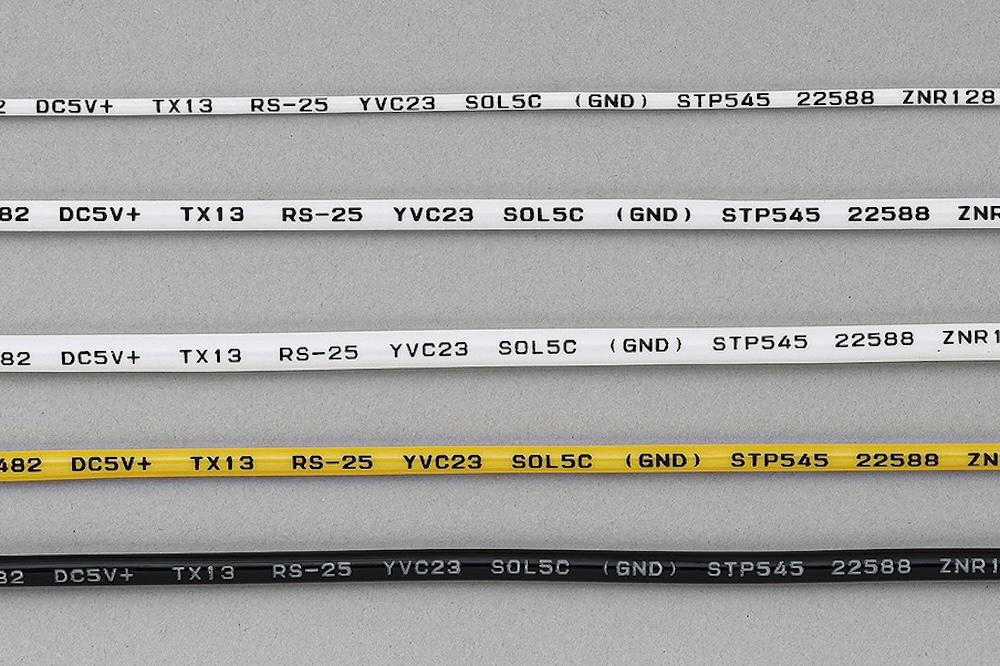

PVC tubes

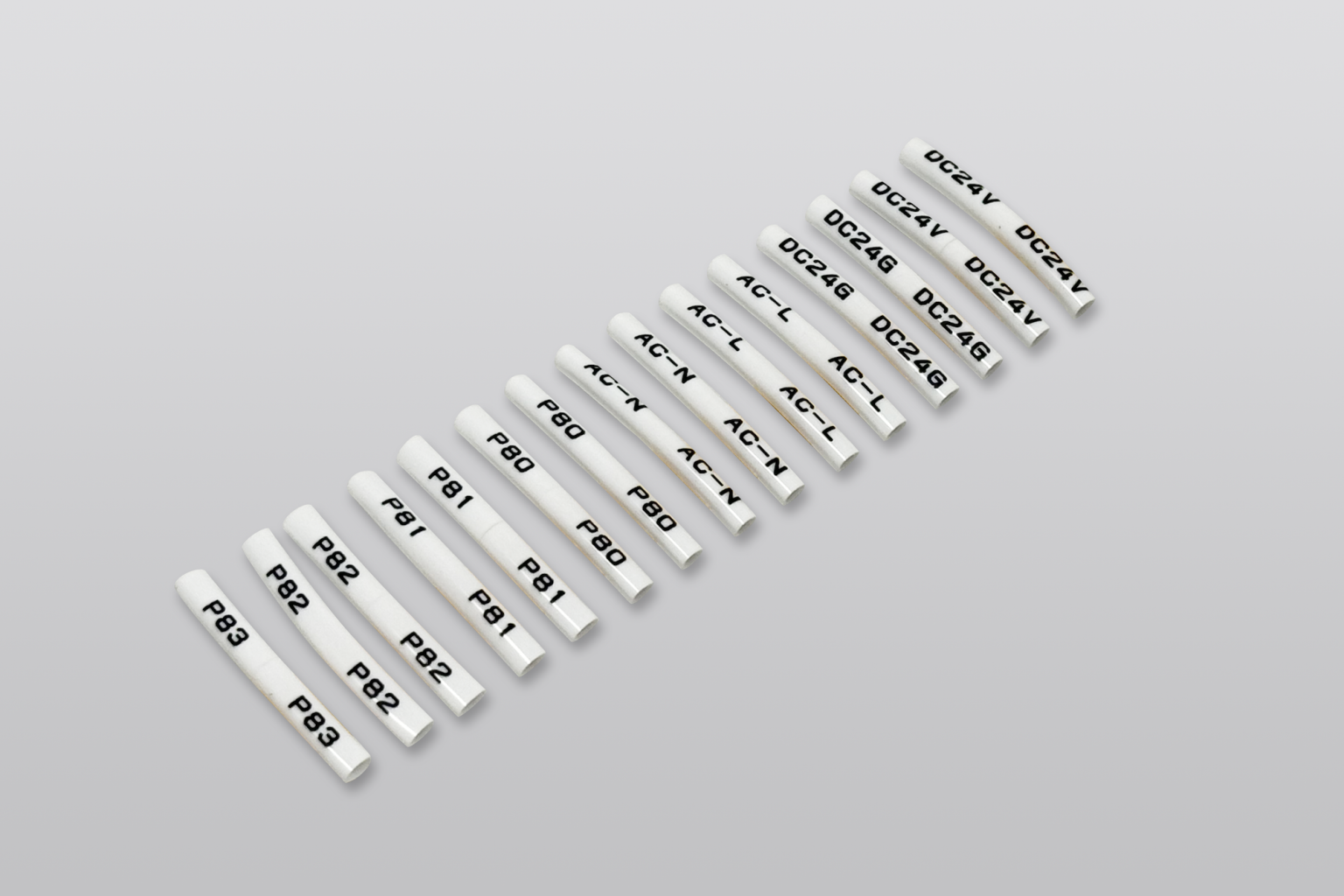

PVC tubes (cut)

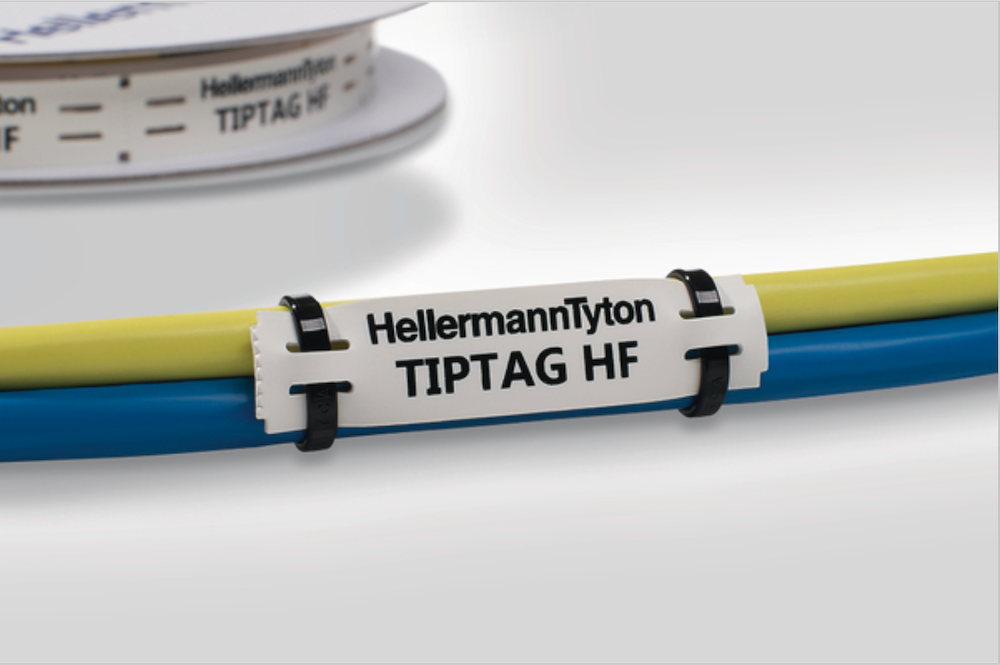

Tiptag

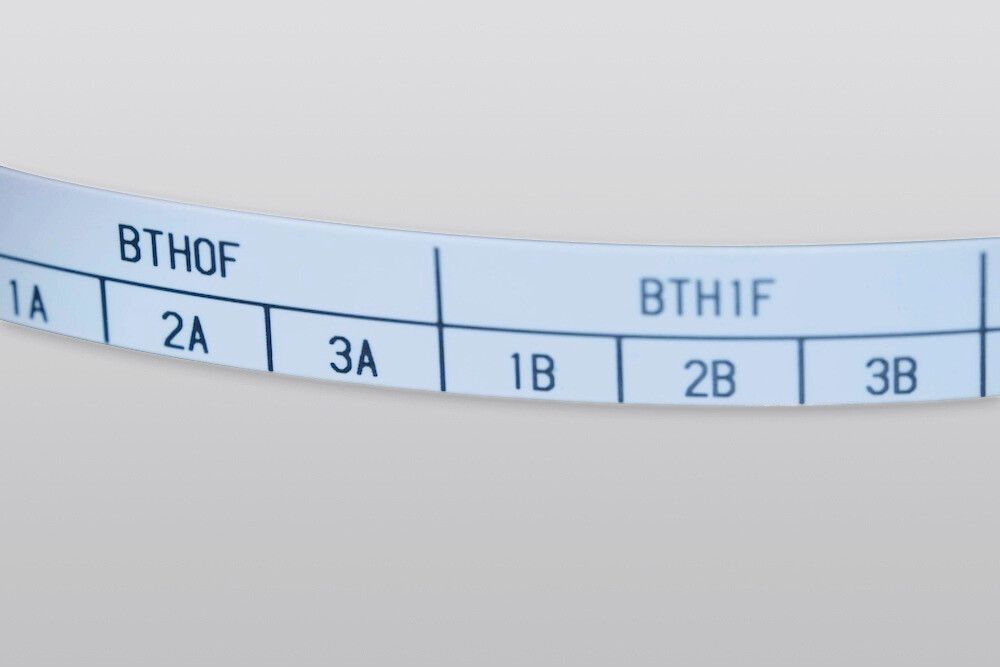

Identification plate

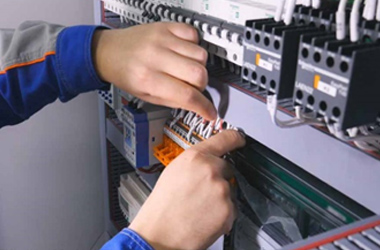

Swichboards and Control Panels
Marker plates are used to identify the wiring of switchboards and control panels required for stable energy supply in power generation facilities, power transmission facilities, railroads, aircraft, ships, industrial robots, machine tools, home appliances, and even cubicles in buildings and condominiums.

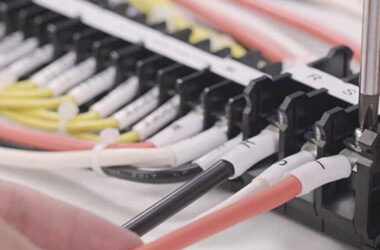

Harnesses (Control Cables)
Our technology is used to identify harnesses for motors and actuators, which require safe and accurate information conveyance, and control cables used in automobiles and motorcycles.

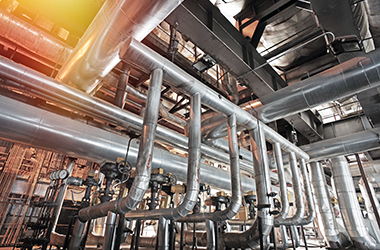

Production Plants
Our products are used in many production plants,which are key infrastructure for achieving more energy-efficient society and SDGs goals.
